Marine
Cruising
DYNALIGHT
REF. 13
The Dynalight Ref. 13 features a breaking strength close to steel. Very supple and very stable under load, it shows a great resistance to fatigue, flexing and abrasion.
Advantages :
Easy and quick to splice.
Use :
Heavy load handling, soft shackles, lashing, straps, spinnaker guys or halyards. Extra cover is easy to fit and recommended on areas working with clutches, winches…
Construction :
12 plait HMPE (High Modulus Polyethylene), Dyneema® SK78 or Dyneema® SK99 braid with PU coating for wear protection.
Colors :
Features
| DYNALIGHT | |||||
| Ø mm | 1,5 | 2 | 3 | 4 | |
|---|---|---|---|---|---|
| R/rupture (daN) | 300 | 550 | 900 | 1300 | |
| Weight (g/m) | 1,50 | 2,30 | 4,70 | 7,00 | |
|
DYNALIGHT HMPE |
|||||
| Ø mm | 2,5 | 3 | 4 | 5 | 6 |
| R/rupture (daN) | 770 | 1050 | 1500 | 2400 | 3700 |
| Weight (g/m) | 3,55 | 5,00 | 7,00 | 13,00 | 22,00 |
| Ø mm | 8 | 10 | 12 | 14 | 16 |
| R/rupture (daN) | 5600 | 10500 | 14500 | 18000 | 21500 |
| Weight (g/m) | 34,00 | 61,00 | 85,00 | 110,00 | 133,00 |
| Ø mm | 18 | 20 | 22 | 24 | 26 |
| R/rupture (daN) | 27000 | 30000 | 35000 | 40000 | 48000 |
| Weight (g/m) | 173,00 | 198,00 | 236,00 | 376,00 | 340,00 |
|

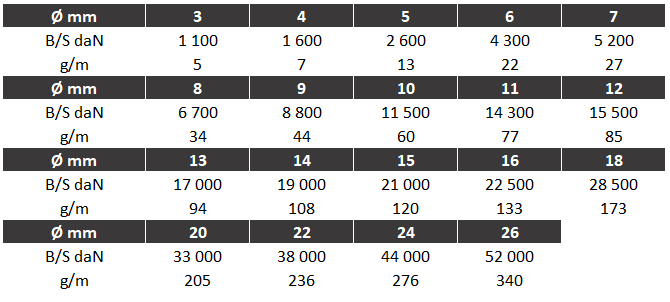

DYNALIGHT PRO SK78 |
|||||
| Ø mm | 3 | 4 | 5 | 6 | 8 |
| R/rupture (daN) | 1100 | 1600 | 2600 | 4300 | 6700 |
| Weight (g/m) | 5,00 | 7,00 | 13,00 | 22,00 | 34,00 |
| Ø mm | 10 | 12 | 14 | 16 | 18 |
| R/rupture (daN) | 11500 | 15500 | 19000 | 22500 | 28500 |
| Weight (g/m) | 60,00 | 85,00 | 108,00 | 133,00 | 173,00 |
| Ø mm | 20 | 22 | 24 | 26 | |
| R/rupture (daN) | 32000 | 38000 | 44000 | 52000 | |
| Weight (g/m) | 198,00 | 236,00 | 276,00 | 340,00 | |
|
DYNALIGHT PRO SK99 |
|||||
| Ø mm | 2 | 3 | 4 | 5 | 6 |
| R/rupture (daN) | 700 | 1250 | 1850 | 3000 | 5500 |
| Weight (g/m) | 2,23 | 4,60 | 7,00 | 11,60 | 21,00 |
| Ø mm | 8 | 9 | 10 | 12 | |
| R/rupture (daN) | 7600 | 9300 | 14100 | 17500 | |
| Weight (g/m) | 32,50 | 42,00 | 58,00 | 81,40 |
